Visualization program screenshots.

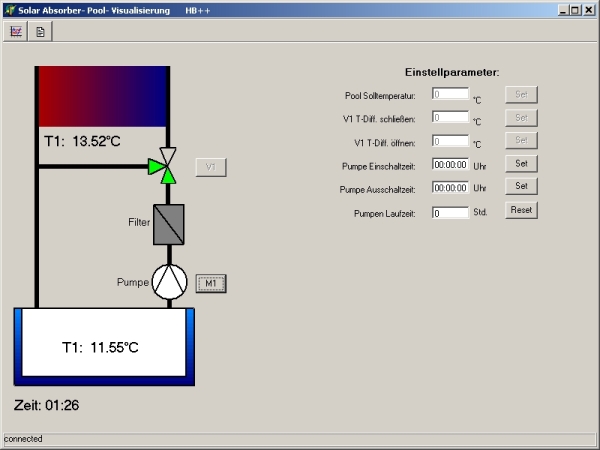

Visualization after program start with pump off.

Communication between PC and the controller ist currently don via wireless lan and will be changed to RS232 in the future.

The PC program is still under construction and will offer more options in the future.

Visualization of water flow with pump on and solar absorber in bypass mode.

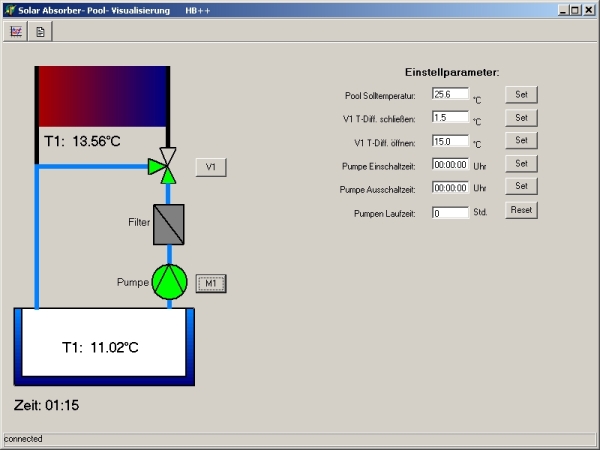

Visualization of water flow with pump on and 2-position valve in solar absorber position. This position will heat up the poo water. If the temperature difference between T1 and T2 falls underneath the preset : “V1 T-Diff. schließen” value, Valve V1 closes.

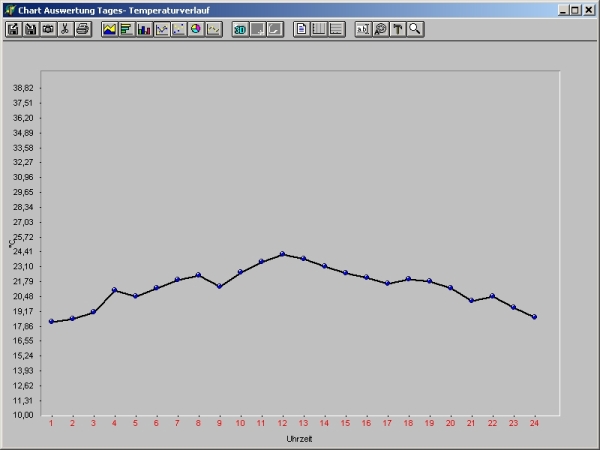

The system collects temperature data during 24 hours and displays it on a chart for system optimization.
